Folding trailer for heavy duty bikes
HD + Steppers
3.370,00€ inc VAT
Safe loading process, perfect for motorbikes
(<500 Kg).
Available, please contact us
Product Description
Download datasheets :
In its “HD version with steppers” ( <500Kg ), the trailer is equipped with the best chassis of our range for heavy motorcycles. It also features foot boards that allow a safe and user friendly loading process. You will also notice that the central rail is 70 mm lower than the footboards. As a result, you gain stability when you are loading as you feel like your legs are suddenly longer (see videos).
Tips from the designer :
It is suitable for users of large motorcycles up to 500 kg, People who are running out of space at home will enjoy this trailer which is easy to manoeuvre despite its weight. Fold it up, store it away almost anywhere in seconds at home or where ever you have arrived and you feel like your trailer can stay on the road overnight for example. ( report to videos and tutorial)
Tutorials
Caractéristiques
| HD + STEPPERS 650 | |
| SPECIFICATIONS | |
| Dimensions unfolded in cm | 265x160x70 |
| Dimensions folded in cm | 74x65x152 |

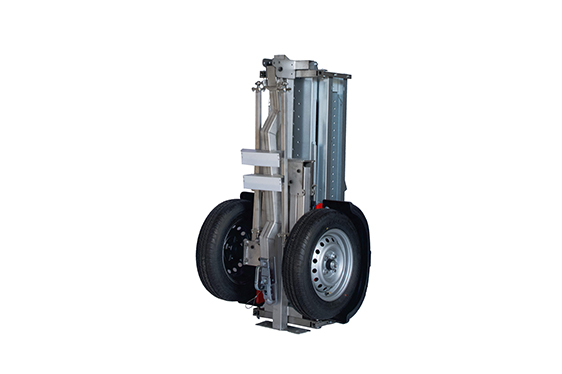

| Folding unfolding process | 10 seconds |
| Tare weight | 145 Kg |
| Useful load | 505 Kg |
| GVW | 650 Kg |
| Loading height | 37 cm |
| Tubular chassis | Stainless steel |
| Suspension housing | Stainless steel |
| CE certification number | e2*2007/46*0583*01 |
| Manufacturing | France |
| EQUIPEMENTS | |
| Complete rail | Galvanized |
| Access rail | Galvanized |
| Wheel locking device | YES |
| Hitch AL-KO | AK7 V PLUS 60x60 |
| Bearing Hub AL-KO | NF375 |
| 13' wheel | 145/80 R 13 79N 4x100 |
| Mudguards | Powder coated side |
| Led lighting | lino 1 |
| Harness | Complete |
| 7 pin plug | YES |
| 2 Strap down cross members | Stainless steel |
| STEPPER KIT | |
| 2 Folding chassis | Stainless steel |
| 2 outside anti-slip rails | Galvanized |
| 2 inside rails | Galvanized |
